Analog Way Aquilon C+ helps Guus Meeuwis end his annual “Groots” concerts in big style

A pair of Analog Way Aquilon C+ multi-screen presentation systems and an RC400T event controller were used to merge content and live feeds on the big screen for Guus Meeuwis’s “Groots met een zachte G - De Aller-La-La-Laatste” concert series finale.

Considered part of the Dutch heritage, musician Guus Meeuwis began performing in a student group whose songs topped the Dutch charts. He launched his solo career in 2001 and in 2006 began hosting annual “Groots” concerts in his home province of Brabant. Producing this event took a lot of time throughout the year, and after nearly two decades Meeuwis decided to dedicate this time to new projects. But to wrap up the series with a bang he hosted a big “Groots” finale in the form of nine sold-out concerts at the Philips Stadium in Eindhoven, The Netherlands.

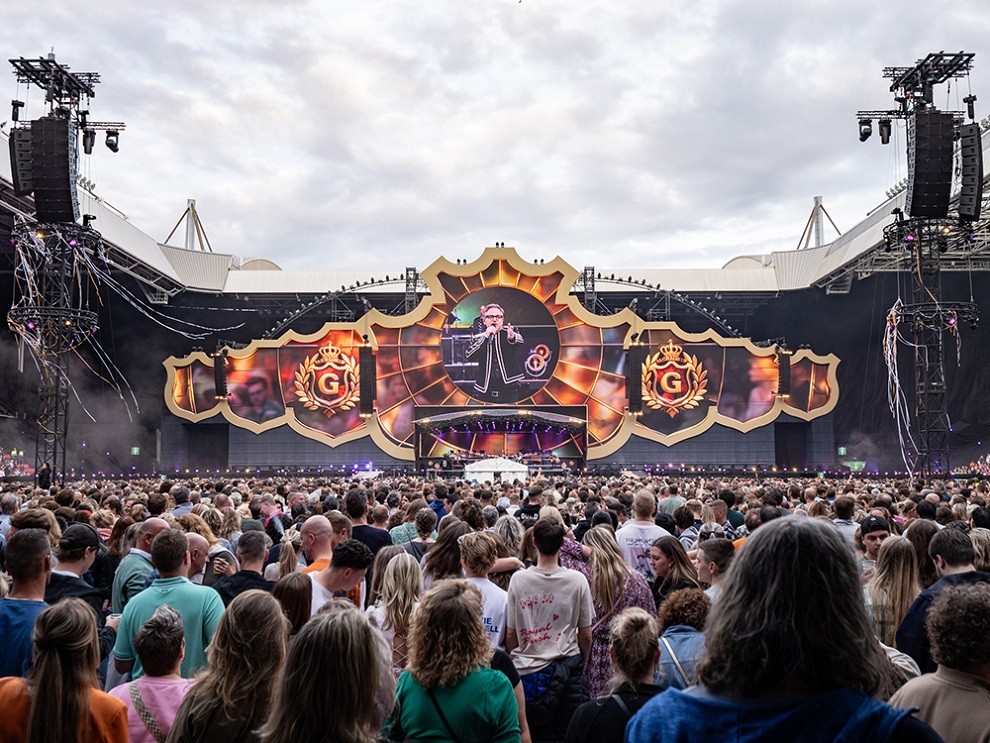

The stage was dominated by a massive LED screen, installed by Faber AV, that spanned the entire stadium and was shaped like multiple shields, the logo for the event. Tenfeet performed media sequencing and distribution for “Groots”. Dave van Roon deployed Analog Way systems to merge the live camera feeds with the content his colleague Kevin Buysse sequenced.

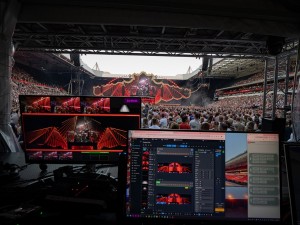

The size of the screen posed a challenge because supplying all pixels with content required four 4K HDMI signals. In consultation with Amsterdam-based Vision Tools Rental NL BV, the Analog Way platform was chosen as powerful enough to deliver the four-times-4K Cut&Fill. After training by Vision Tools’ Jimmy Geelen, van Roon merged the content and live feeds on two fully equipped Aquilon C+ units, in active redundancy, controlled from an Analog Way RC400T.

Van Roon created command sequences that he could trigger in his own PHP code to make pre-programming in the studio easier and quicker. This turned out to be a creative asset as van Roon used that protocol to push LUT files into the inputs of the machines. Based on the concepts of the creative team these LUT files could be created in Photoshop using its adjustment layers.

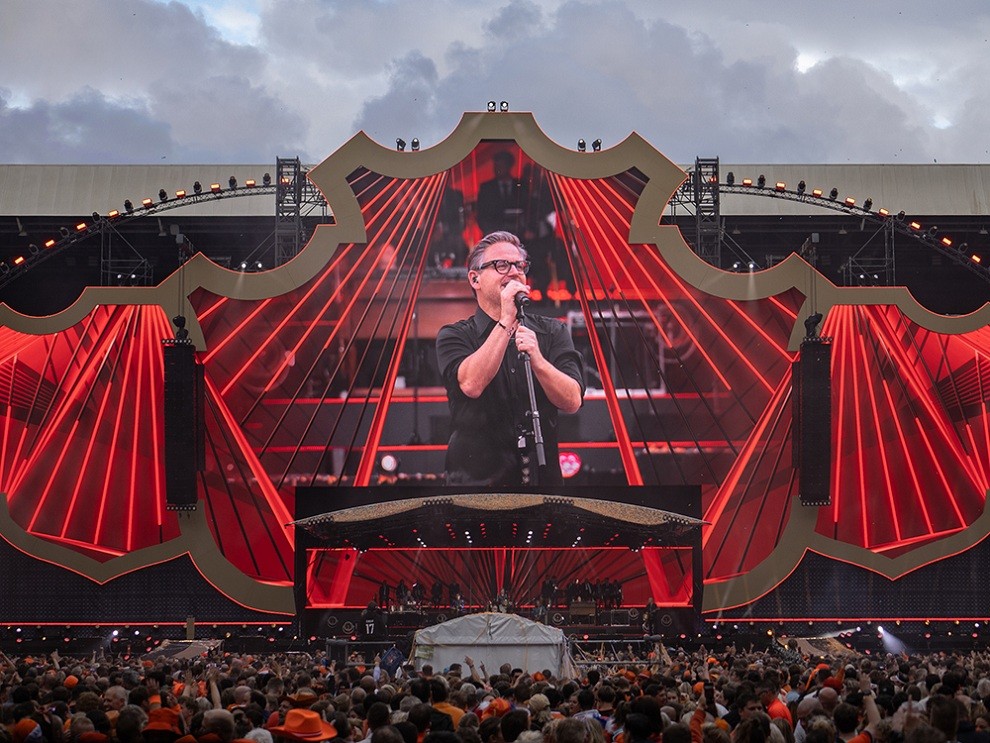

“A good example of an applied LUT is the song ‘Ik ook van jou’ where the content had red and white beams on a black background”, says van Roon. “The live feed was shown in the center, using the four-times-4K Cut&Fill to be behind the beams. A custom-built LUT file removed all colors from the live feed, except for red. That way, the live feed became black and white with red, matching the surrounding content, making it one cohesive image.”

(Photos: Dave van Roon)

www.analogway.com
